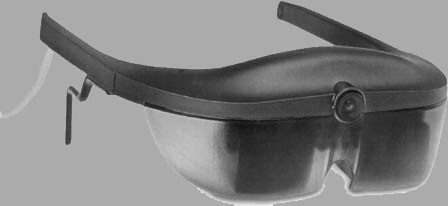

NIVIS-2 NIGHT VISION GLASSES
The Night Vision System (NIVIS) is primarily intended as a visual aid for people who require improved vision at night or in low visibility conditions.
NIVIS-2 can help persons with impaired night vision i.e. “night blindness” to orient themselves and move independently in twilight or at night.
The NIVIS-2 opto-electronic glasses have the following features:
- A light sensitive CCD micro camera which produces a crisp and clear image, even in twilight.
- An additional infrared beam (invisible) allowing the user to see even in total darkness.
This IR supply can be switched on by the user if required
- Each eye has its own LCD micro-display where the images are projected.
There are many uses for these night vision glasses, ideal for security
when it is possible to walk around an entire building in total darkness, to
increase the range you could also use a powerbeam IR torch. (see below)
Also suitable for night clubs, surveillance, drug control
The glasses are supplied with a rechargeable battery pack that is designed to
clip onto your belt.
||black and white
||1m to infinity
||LCD (liquid crystal
|Weight of glasses
|Field of view
||ca. 30 deg - 22 deg
|Weight of battery unit
||Ni-Mh 12v 1.2A
|Operating time without IR
|Operating time with IR
|Infra red range
Powerbeam Infrared torch
||Plastic bodied waterproof infrared torch. Krypton bulb.
Ideal for use with night vision equipment. Requires 4 D cells.
1.0 Safety Instructions
Before using the NIVIS-2 glasses please read these safety instructions.
Keep them in a safe place for later reference.
1 The NIVIS-2 glasses must never be used for driving any type
of vehicle cars, bicycles, boats, etc.
2. To avoid any risk of electrocution, do not bring any part of the NIVIS-2
glasses in contact with water when the power unit is connected to an
AC outlet (e. g. when recharging the batteries, using an external TV or
3. The glasses and the power and control unit should only be opened by
qualified service personnel.
4. The "CE conformity" label is located on the power unit.
5. If any of the following symptoms occur, especially if using the glasses
for long periods, stop using the NIVIS-2 glasses at once:
• Eye fatigue or irritation
• Headaches or dizziness
• Aches and pain in the neck or shoulders
• If you have a history of epileptic attacks, sudden risk of fainting,
hypertension, etc., seek your doctor's advice before using the glasses.
6. The NIVIS-2 glasses should not be used by children under the age of
fifteen. It is not a toy!
7. After using the NIVIS-2 glasses at night, your eyes need some time to
readapt to the environment.
8. Please read carefully this handbook and use the NIVIS-2 glasses accor-
dingly in order to avoid any risk or damage to your eyes. To avoid such
risk or damage, read this handbook carefully and always use the
NIVIS-2 glasses in accordance with the operating instructions.
9. In case of any doubts please ask your professional dealer or consult
NIVIS-2 (Night Vision System) is intended primarily as a visual aid for
people who require improved vision in twilight and at night or in low visibi-
lity conditions. Upon appropriate examination by an ophtalmologist, NIVIS-2
can be a useful visual aid for persons who suffer from impaired night vision
(Night Blindness). NIVIS-2 allows such persons to orient themselves and
move independently in low visibility
NIVIS-2 consists of a spectacle unit
(Glasses) connected by cable to a
power and control unit. The system includes an AC/DC
adapter for recharging the batteries.
A micro-camera located in the spectacle frame
unit is used to record images.
These images are then projected on
two micro-displays in the spectacles,
which can be seen by the user
through display optics. Contrast and
brightness can be manually adjusted
on the power and control unit.
If required, the glasses can provide
additional illumination of the scene by
an infrared (IR) light source located in
the frame of the glasses. This addi-
tional illumination is detected by the
camera, but is not visible to the naked
An additional infrared torch can be used with the
unit for further illumination of the environment.
An external video source can also be connected to the power and control
unit so that NIVIS-2 can be used as display monitor for electronic reading.
Batteries and charger are contained in the power and control unit, and
must be connected through the 12V AC/DC transformer (supplied) to any AC
plug (110V - 240V). Complete charging takes around 50 min.
The control panel on the power and control unit have following knobs,
switches and sockets.
OFF/ON switch for power to NIVIS-2
When the provided video cable is plugged into the Video socket, the image
source from the glasses camera is automatically switched to external video
The glasses consist of a frame which accommodates a micro camera, two
flat micro displays, internal electronics, and the infrared light source. The
recorded images are projected on two micro-displays and seen by the user
through display optics.
The visor located in front of the glasses acts as an anti-glare filter.
The glasses are worn like normal glasses and are held in place by the ear-
pieces and the nosepiece. An elastic band connects both earpieces and is
worn around the back of the head, further securing the glasses. The nose-
piece and earpieces are removable attachments allowing for individual opti-
mal adaptation of the glasses.
The cable link is fixed to the spectacle part and must be plugged into power
and control unit.
3.3 Power and control unit
The Power supply unit comprises:
• Power supply pack
• Battery (not removable)
• control panels with sockets, knobs and switches
• carrying clip
3.3.2 Power Supply
The system uses an internal rechargeable nickel-metal-hydride (Ni-MH)
power supply pack1;12V/1.2Ah) and an AC/DC 12V adapter with cable and
a connection plug.
The battery can be completely
recharged from empty in about 50
minutes using the adapter provided.
3.3.3 Power and control unit
The power and control unit is inside a plastic casing which has a removable
clip allowing it to be worn on the belt.
4.0 Operating instructions for NIVIS-2
4.1 Switching on and use
1. For information on charging batteries see
Chapter 7 (Power supply),
2. Plug the connector of the glass cable into the
Glasses socket located on the power and
control unit, ensuring it is fully inserted.
Handle it with care to avoid twisting the pins. Then screw the outer ring
to secure the plug.
3. Switch the appliance on using the ON/OFF switch. The green LED light
(Power) will light up on the front panel.
4.2 Switching off the glasses
1. To turn the appliance off, use the OFF/ON ^y OFF •'I ON
switch. The associated green LED light will go
2. Remove the plug, first loosening the swivel cap by turning it counter-
clockwise. Then pull the plug from the socket.
3. To protect the battery pack against excessive discharge, the appliance
should always be switched off when not in use.
4. When not in use for longer periods the unit should be kept in its
5.0 Adapting to individual user
5.1 Optical adjustment for the individual user
All optical adjustments for individual users should be carried out by an
ophtalmologist or optician.
The following points must be taken into account:
1. Prior to carrying out the adjustment, the glasses and the battery unit
must be connected and switched on. Images must be visible on both left
and right displays.
2. The correct height is obtained by adjusting the nosepiece. To do so,
loosen the screws on the housing of the glasses. With the user wearing
the glasses, adjust the nosepiece height until the displays are optimally
centered to the optic axes of the eyes. Then retighten the screws care-
3. The earpieces are fixed to the frame of the glasses by small screws and
can be adapted individually for each user by an optician.
4. To optimize the position of the two displays so that both images are seen
as a single visual field, carefully turn with the provided small screwdriver
the two prismatic lenses located near the viewer side of the displays. The
thickest side of the prismatic lenses are identified by a small red dot. This
adjustment compensates for any individual differences in the optic axes.
This adjustment should be performed by the optician only once, before
the glasses are worn for the first time.
5. The displays are focused to infinity, to allow people with normal vision to
use them without straining their eyes. Consequently there may be some
accommodation problems in case of myopia and astigmatism.
Wearing additional correcting glasses together with the NIVIS-2 glasses is
uncomfortable and means additional weight. We therefore recommend
that corrective lenses be placed into the attachments located behind the
These corrective lenses must be made and put into place by an optician.
In this case, the optimal adaptation of the NIVIS-2 glasses should be
carried out after the corrective lenses have been inserted.
5.2 Brightness and contrast
The user can manually adjust 3 contrast and -fr brightness with the two
knobs located on the top panel of the battery unit.
The unit has no energy saving mode and it is recommended to switch
OFF the system when not in use.
The switch must be in position OFF when the cable for the glasses is to
be connected or disconnected.
7.0 Power supply
Power supply to the appliance is supplied by internal rechargeable Ni-MH-
batteries, A 12V AC/DC adapter is supplied allowing to recharge completely
the batteries in 50 minutes.
8.0 Maintenance and Cleaning Instructions
• To clean the glasses and power and control unit, use a damp cloth. A
light rinsing agent may be added to the water. Do not use any deter-
• To clean the optical parts of the glasses (LCD's, camera lens etc.), use a
dry, clean cloth (a cleaning cloth for this purpose is provided with the
