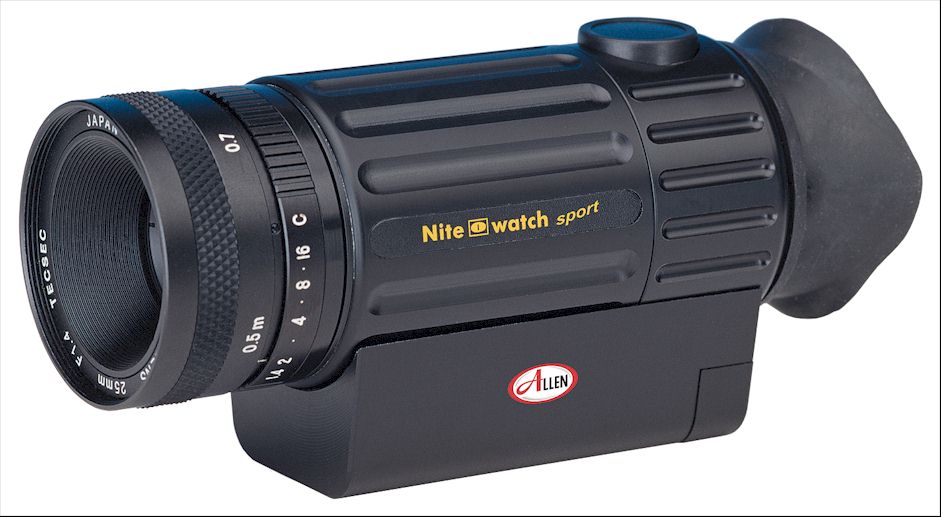

Cobra nite watch (night watch) sport
Professional night vision equipment for journalists, security consultants,
police and armed forces. The nite watch is available in 4 tube generations, gen
2+, Supergen, Hypergen and gen 3.

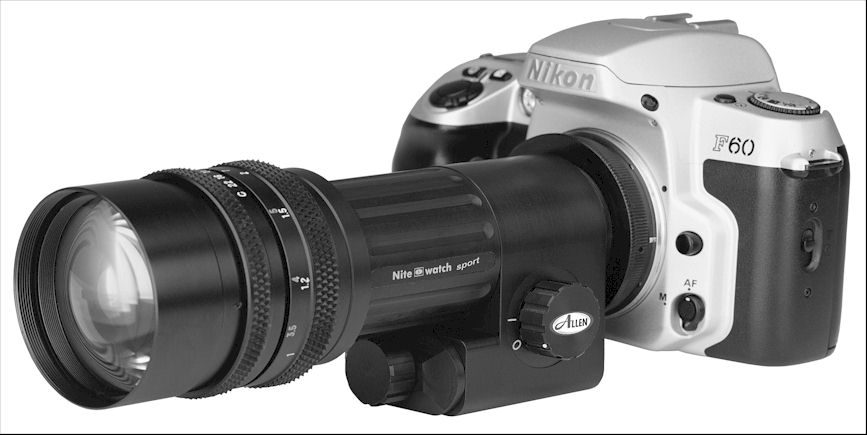

 35mm
camera adaptor |

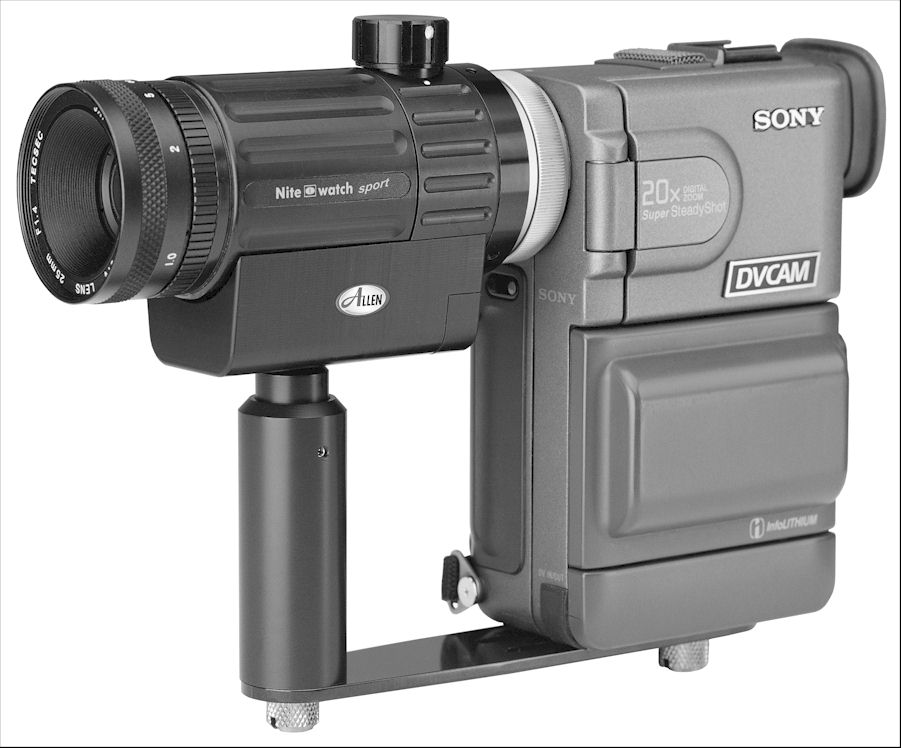

 Camcorder
adaptor |
Versatile night vision system available with adapters for 35mm cameras, cctv
camera adapters, video camcorder adapters. Top quality image intensifier tubes,
ultra compact and light weight night vision system, rugged, shockproof and
compact.
Nite Watch P2000 series night vision

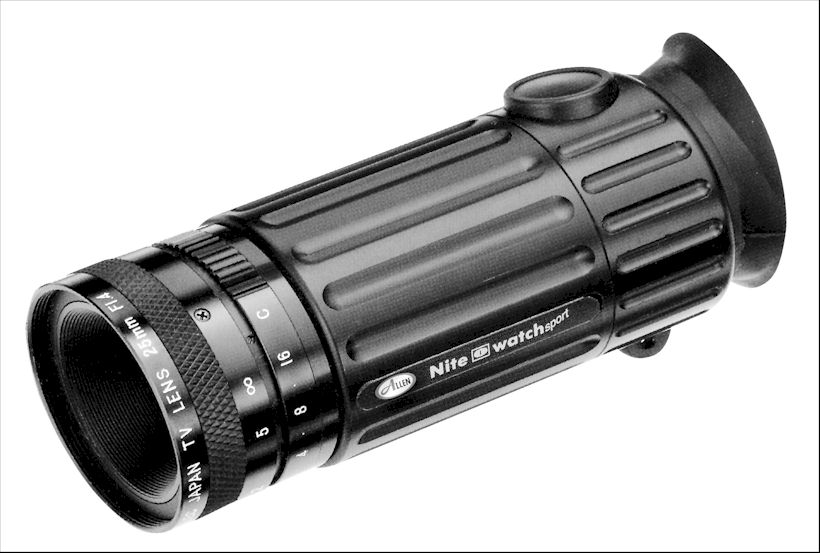

Basic unit |
Side pack |

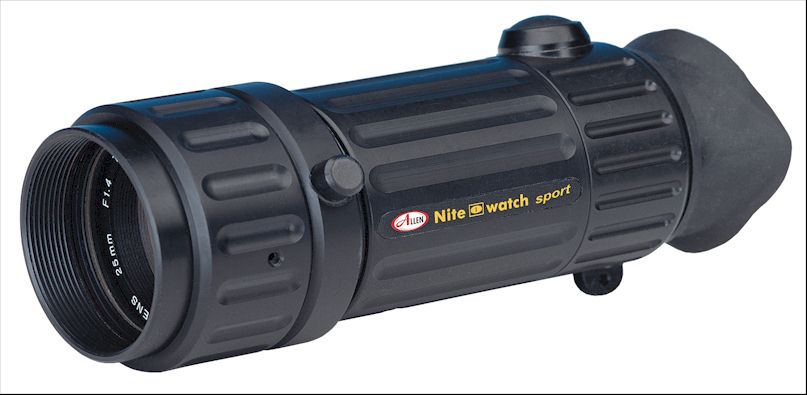

 Rugged |
Side pack
|
Available with an optional side pack. The side pack will take larger
batteries and also improves the field of view from 34 deg to 42 deg because the
3xCR1 cell holder on the standard model restricts the eyepiece. The side pack
also has a standard tripod mount.
Generation 2 - Usually an S-25 (extended red) photocathode (with photosensitivity of 240-400 uA/lm) with a microchannel plate
(MCP) to achieve gain. Normally uses fibre-optic inversion. Gen II tubes provide good performance in low light levels and exhibit
very low distortion making them well suited for use with video or still cameras. They are equipped with automatic gain control,
flash protection and feature edge-to-edge definition. Resolution in the centre varies between 30-35
Ip/mm.
Generation 2+ - Based on Gen 2 tube technology, but has enhanced photocathode sensitivity (typical photosensitivity of 500-
600+ uA/lm). Resolution in the centre varies between 35-45 Ip/mm.
| Model |
Gen |
Size |
Weight |
Batt |
Lens |
Mag |
Fov |
Range |
| P2000 |
2+ |
120 x46x46 |
.33kg |
3xCR1 |
25mm F1.4 |
1.0x |
34 |
1.5-210m |
| P2000 + sidepack |
2+ |
120 x46x60 |
.39kg |
2xAAA |
25mm F1.4 |
1.0x |
42 |
1.5-210m |
| P2000 rugged |
2+ |
120 x 46x46 |
.33kg |
3xCR1 |
25mm F1.4 |
1.0x |
34 |
1.5-210m |
| P2000 rugged + sidepack |
2+ |
120 x46x60 |
.39kg |
2XAAA |
25mm F1.4 |
1.0x |
34 |
1.5-210m |
SuperGen - Based on Gen 2 tube technology, but with further enhanced photocathode sensitivity (photosensitivity of 600-700+
uA/lm). Resolution in the centre varies between 45-60 Ip/mm.
| Model |
Gen |
Size |
Weight |
Batt |
Lens |
Mag |
Fov |
Range |
| P2000 |
Supergen |
120 x46x46 |
.33kg |
3xCR1 |
25mm F1.4 |
1.0x |
34 |
1.5-210m |
| P2000 + sidepack |
Supergen |
120 x46x60 |
.39kg |
2xAAA |
25mm F1.4 |
1.0x |
42 |
1.5-210m |
| P2000 rugged |
Supergen |
120 x 46x46 |
.33kg |
3xCR1 |
25mm F1.4 |
1.0x |
34 |
1.5-210m |
| P2000 rugged + sidepack |
Supergen |
120 x46x60 |
.39kg |
2XAAA |
25mm F1.4 |
1.0x |
34 |
1.5-210m |
Hyper gen - Further improvements over Supergen
| Model |
Gen |
Size |
Weight |
Batt |
Lens |
Mag |
Fov |
Range |
| P2000 |
Hypergen |
120 x46x46 |
.33kg |
3xCR1 |
25mm F1.4 |
1.0x |
34 |
1.5-210m |
| P2000 + sidepack |
Hypergen |
120 x46x60 |
.39kg |
2xAAA |
25mm F1.4 |
1.0x |
42 |
1.5-210m |
| P2000 rugged |
Hypergen |
120 x 46x46 |
.33kg |
3xCR1 |
25mm F1.4 |
1.0x |
34 |
1.5-210m |
| P2000 rugged + sidepack |
Hypergen |
120 x46x60 |
.39kg |
2XAAA |
25mm F1.4 |
1.0x |
34 |
1.5-210m |
To increase the magnification of the P2000 units they can be supplied with an
additional lens.
| Model |
Lens |
Magnification |
| P9300 |
50mm F1.3 |
2x |
| P9400 |
75mm F1.3 |
3x |
| P9500 |
12.5-75mm F1.8 zoom |
0.5-3x |
| P9700 |
16-160mm F1.8 zoom |
0.65-6.4m |
Camera adapters for Nite watch system
SLR C mount adaptor ring
49mm adaptor ring
37mm adaptor ring
|
