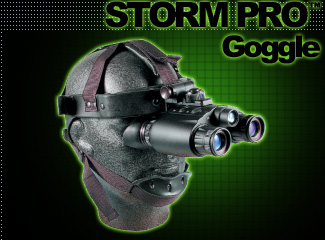

Storm Pro night vision goggles

An ultra compact, ergonomically styled Gen 1 binocular goggle with all-metal bodyshell .
The �wide view� eyepieces are internally focusing so they do not affect eye relief when focussed.
The 2 x 26mm f1.4 lens offer 1.0x magnification with a wide 40� field of view.
Power is provided by 2 x 1.5V Alkaline LR1/MN9100/Type N batteries (not supplied).
A short-range Infrared Illuminator is built-in and powered by the scopes batteries. This has recently been updated to include a zoom facility offering wide area and spot beam.
The lightweight headmount offers a flip-and-lock facility, safety lock, eye-relief adjustment and replaceable leather forehead/head pads.
Supplied with a shoulder case.
Optional 80mm f1.7 lenses convert the unit in to a hand-held 3.6x magnification binocular.
Please Note: Because of this units very wide exit pupil diameter, no interpupillary adjustment is required.

Optional Accessories
7002 - 80mm f1.7 Lenses


STORM PRO�

Gen Dimensions Weight FOV Lens 1 137 x 113 x 58mm 820g 40� 2 x 26mm f1.4 Mag Battery MRVR I Red Case 1.0x 2 x LR1/MN9100/Type N 1.5V Alkaline 0.2-30m Yes Yes

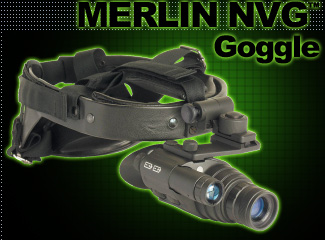

Merlin NVG goggles

Based on the Merlin� monocular, the Merlin NVG� offers a high grade Gen 1 image intensifier tube in a compact, lightweight and partially rubber armoured bodyshell. The lightweight headmount offers a flip-and-lock facility, safety lock, eye-relief adjustment and replaceable leather forehead/head pads.
Offering 1.0x magnification as standard, 80mm (4.0x), 100mm (5.0x) and 120mm (6.0x) lenses are available as optional extras.
The built-in Infrared (IR) Illuminator has a variable beam setting allowing it to be focused from flood to spot so that it can be used with all lens options.

MERLIN NVG�

Gen Dimensions Weight FOV Lens 1 136 x 47 x 70mm 300g 40� 26mm f1.4 Mag Battery MRVR I Red Case 1.0x 2 x 1.5V Alkaline E90/Type N 0.25-30m Yes Yes

Tornado goggle Gen2 IIT

Compact, lightweight Gen 2 biocular goggle. Features ergonomic eyecups and adjustable interpupillary movement. Headmount offers flip and lock, safety lock, eye-relief adjustment and replaceable leather forehead/head pads. A small, short-range IR illuminator is built-in. Optional high power IR illuminators improve usable range in very low light/total darkness.

The unit can be converted to a hand-held high magnification biocular with the addition of telephoto lenses - the 7013 100mm f1.5 and 165mm f2.0 which offer 4.0x and 6.3x image magnification respectively.

Optional Accessories
7011 - 150mW IR Illuminator
7012 - 75mW IR Illuminator
7013 - 100mm f1.5 Lens
7015 - 165mm f2.0 Lens
7028 - IR Tele Lens
7029 - 3x Lens Converter


TORNADO�

Gen Dimensions Weight FOV Lens 2 173 x 148 x 73mm 700g 40� 26mm f1.1 Mag Battery MRVR I Red Case 1.0x 2 x 1.5V Alkaline AA/MN1500 0.3-150m Yes Yes

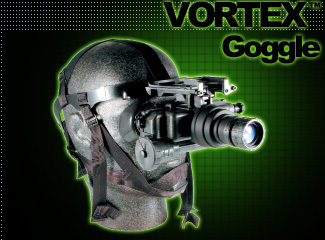

Vortex night vision goggles

Top of the range high grade Gen 2+ biocular goggle.

Features a tried and tested bodyshell with ergonomic eyecups, interpupillary movement, a built in short range IR illuminator, a low battery warning LED indicator and an IR active LED indicator.

Headmount is lightweight and offers a good level of eye relief adjustment.

Supplied with a pouch case, sacrificial lenses, different size brow pads and cleaning tissues.

VORTEX�

Gen Dimensions Weight FOV Lens 2+ 161 x 152 x 76mm 680g 40� 35mm f1.2 Mag Battery MRVR I Red Case 1.0x 2 x AA/MN1500 1.5V Alkaline 1-180m Yes Yes

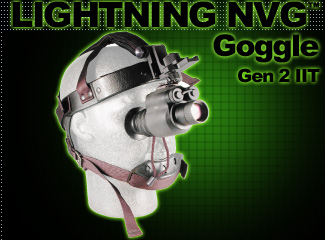

Lightning NVG goggles Gen2 IIT

Based on the ultra-compact, lightweight Lightning^� multipurpose Gen 2 monocular with a rugged, all-metal bodyshell. Power is supplied by 2 x AA/MN1500 1.5V Alkaline batteries.
Supplied as standard with a compact 26mm f1.1 lens, the Lightning NVGsup>� offers parity (1.0x magnification) with an ultra wide 40� field of view. The lightweight headmount that is included offers a flip-and-lock facility, safety lock, eye-relief adjustment and replaceable leather forehead/head pads.
For longer range observation, optional multicoated lenses are available offering 4.0x and 6.3x magnification. A 3x Lens Converter can also be fitted to the standard 26mm f1.1 lens to give 3.0x image magnification.
A low power, close-range 5mW IR Illuminator is built-in as standard. Optional high power 75mW and 150mW IR Illuminators are available for longer range use in very low light/total darkness (NB these cannot be fitted at the same time as the headmount).
A weapon mount adaptation is available that allows use with either an active red dot laser sight or alternatively mounted behind a passive Aimpoint^� red dot or EOTech Holographic sight.
An SLR/Video Camera Adaptor is supplied as standard. The adaptor has 37mm and 52mm threads that allow the unit to be fitted to the filter thread of camera lenses.
A tripod thread is fitted as standard and the unit is supplied with a shoulder/belt-mount pouch case.
Optional Accessories
7011 - 150mW IR Illuminator
7012 - 75mW IR Illuminator
7013 - 100mm f1.5 Lens
7015 - 165mm f2.0 Lens

LIGHTNING NVG�

Gen Dimensions Weight FOV Lens 2 115 x 48 x 67mm 700g 40� 26mm f1.1 Mag Battery MRVR I Red Case 1.0x 2 x 1.5V Alkaline AA/MN1500 0.3-150m Yes Yes

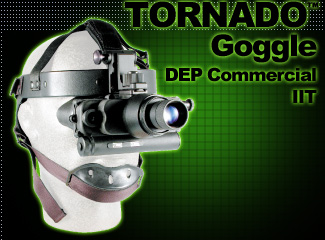

Tornado goggle DEP Commercial

Compact, lightweight biocular goggle fitted with a Photonis-DEP Commercial grade Image Intensifier Tube.

Features ergonomic eyecups and adjustable interpupillary movement. Headmount offers flip and lock, safety lock, eye-relief adjustment and replaceable leather forehead/head pads. A small, short-range IR illuminator is built-in with the option to fit a 7028 IR Telephoto Lens. Optional high power IR illuminators improve usable range in very low light/total darkness.
The unit can be converted to a hand-held high magnification biocular with the addition of telephoto lenses - the 7013 100mm f1.5 and 7015 165mm f2.0 which offer 4.0x and 6.3x image magnification respectively. A 7029 3x Lens Converter can also be fitted to the standard 26mm f1.2 lens to give 3.0x image magnification.

Optional Accessories
7011 - 150mW IR Illuminator
7012 - 75mW IR Illuminator
7013 - 100mm f1.5 Lens
7015 - 165mm f2.0 Lens
7028 - IR Tele Lens
7029 - 3x Lens Converter


TORNADO� (DEP COMMERCIAL)

Gen Dimensions Weight FOV Lens 2 173 x 148 x 73mm 700g 40� 26mm f1.2 Mag Battery MRVR I Red Case 1.0x 2 x 1.5V Alkaline AA/MN1500 0.3-150m Yes Yes

Tornado Goggle DEP Gen2+ IIT

Compact, lightweight biocular goggle fitted with a Photonis-DEP MilSpec Gen 2+ Image Intensifier Tube.

Features ergonomic eyecups and adjustable interpupillary movement. Headmount offers flip and lock, safety lock, eye-relief adjustment and replaceable leather forehead/head pads. A small, short-range IR illuminator is built-in with the option to fit a 7028 IR Telephoto Lens. Optional high power IR illuminators improve usable range in very low light/total darkness.
The unit can be converted to a hand-held high magnification biocular with the addition of telephoto lenses - the 7013 100mm f1.5 and 7015 165mm f2.0 which offer 4.0x and 6.3x image magnification respectively. A 7029 3x Lens Converter can also be fitted to the standard 26mm f1.2 lens to give 3.0x image magnification.

Optional Accessories
7011 - 150mW IR Illuminator
7012 - 75mW IR Illuminator
7013 - 100mm f1.5 Lens
7015 - 165mm f2.0 Lens
7028 - IR Tele Lens
7029 - 3x Lens Converter


TORNADO� (DEP GEN 2+)

Gen Dimensions Weight FOV Lens 2+ 173 x 148 x 73mm 700g 40� 26mm f1.2 Mag Battery MRVR I Red Case 1.0x 2 x 1.5V Alkaline AA/MN1500 0.3-150m Yes Yes

Torado goggles DEP SHD-3 IIT

Compact, lightweight biocular goggle fitted with a Photonis-DEP MilSpec SHD-3 SuperGen Image Intensifier Tube.

Features ergonomic eyecups and adjustable interpupillary movement. Headmount offers flip and lock, safety lock, eye-relief adjustment and replaceable leather forehead/head pads. A small, short-range IR illuminator is built-in with the option to fit a 7028 IR Telephoto Lens. Optional high power IR illuminators improve usable range in very low light/total darkness.
The unit can be converted to a hand-held high magnification biocular with the addition of telephoto lenses - the 7013 100mm f1.5 and 7015 165mm f2.0 which offer 4.0x and 6.3x image magnification respectively. A 7029 3x Lens Converter can also be fitted to the standard 26mm f1.2 lens to give 3.0x image magnification.

Optional Accessories
7011 - 150mW IR Illuminator
7012 - 75mW IR Illuminator
7013 - 100mm f1.5 Lens
7015 - 165mm f2.0 Lens
7028 - IR Tele Lens
7029 - 3x Lens Converter


TORNADO� (DEP SHD-3)

Gen Dimensions Weight FOV Lens SuperGen 173 x 148 x 73mm 700g 40� 26mm f1.2 Mag Battery MRVR I Red Case 1.0x 2 x 1.5V Alkaline AA/MN1500 0.3-150m Yes Yes

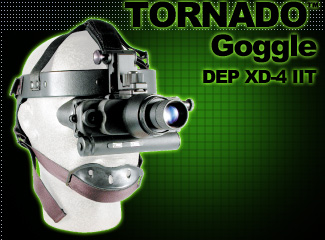

Tornado goggles DEP XD-4 IIT

Compact, lightweight biocular goggle fitted with a Photonis-DEP MilSpec XD-4 HyperGen Image Intensifier Tube.

Features ergonomic eyecups and adjustable interpupillary movement. Headmount offers flip and lock, safety lock, eye-relief adjustment and replaceable leather forehead/head pads. A small, short-range IR illuminator is built-in with the option to fit a 7028 IR Telephoto Lens. Optional high power IR illuminators improve usable range in very low light/total darkness.
The unit can be converted to a hand-held high magnification biocular with the addition of telephoto lenses - the 7013 100mm f1.5 and 7015 165mm f2.0 which offer 4.0x and 6.3x image magnification respectively. A 7029 3x Lens Converter can also be fitted to the standard 26mm f1.2 lens to give 3.0x image magnification.

Optional Accessories
7011 - 150mW IR Illuminator
7012 - 75mW IR Illuminator
7013 - 100mm f1.5 Lens
7015 - 165mm f2.0 Lens
7028 - IR Tele Lens
7029 - 3x Lens Converter


TORNADO� (DEP XD-4)

Gen Dimensions Weight FOV Lens HyperGen 173 x 148 x 73mm 700g 40� 26mm f1.2 Mag Battery MRVR I Red Case 1.0x 2 x 1.5V Alkaline AA/MN1500 0.3-150m Yes Yes

Tornado goggles XR-5 IIT

Compact, lightweight biocular goggle fitted with a Photonis-DEP MilSpec XR-5 Auto-Gating HyperGen Image Intensifier Tube.

Features ergonomic eyecups and adjustable interpupillary movement. Headmount offers flip and lock, safety lock, eye-relief adjustment and replaceable leather forehead/head pads. A small, short-range IR illuminator is built-in with the option to fit a 7028 IR Telephoto Lens. Optional high power IR illuminators improve usable range in very low light/total darkness.
The unit can be converted to a hand-held high magnification biocular with the addition of telephoto lenses - the 7013 100mm f1.5 and 7015 165mm f2.0 which offer 4.0x and 6.3x image magnification respectively. A 7029 3x Lens Converter can also be fitted to the standard 26mm f1.2 lens to give 3.0x image magnification.

Optional Accessories
7011 - 150mW IR Illuminator
7012 - 75mW IR Illuminator
7013 - 100mm f1.5 Lens
7015 - 165mm f2.0 Lens
7028 - IR Tele Lens


TORNADO� (DEP XR-5)

Gen Dimensions Weight FOV Lens HyperGen 173 x 148 x 73mm 700g 40� 26mm f1.2 Mag Battery MRVR I Red Case 1.0x 2 x 1.5V Alkaline AA/MN1500 0.3-150m Yes Yes

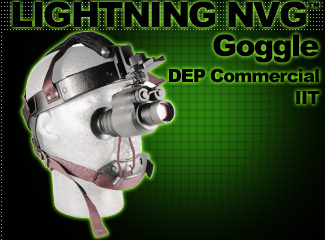

Lightning NVG goggles DEP commercial

Based on the ultra-compact, lightweight Lightning^� multipurpose Gen 2 monocular with a rugged, all-metal bodyshell. Fitted with a Photonis-DEP Commercial Grade Image Intensifier Tube. Power is supplied by 2 x AA/MN1500 1.5V Alkaline batteries.
Supplied as standard with a compact 26mm f1.1 lens, the Lightning NVGsup>� offers parity (1.0x magnification) with an ultra wide 40� field of view. The lightweight headmount that is included offers a flip-and-lock facility, safety lock, eye-relief adjustment and replaceable leather forehead/head pads.
For longer range observation, optional multicoated lenses are available offering 4.0x and 6.3x magnification. A 3x Lens Converter can also be fitted to the standard 26mm f1.1 lens to give 3.0x image magnification.
A low power, close-range 5mW IR Illuminator is built-in as standard. Optional high power 75mW and 150mW IR Illuminators are available for longer range use in very low light/total darkness (NB these cannot be fitted at the same time as the headmount).
A weapon mount adaptation is available that allows use with either an active red dot laser sight or alternatively mounted behind a passive Aimpoint^� red dot or EOTech Holographic sight.
An SLR/Video Camera Adaptor is supplied as standard. The adaptor has 37mm and 52mm threads that allow the unit to be fitted to the filter thread of camera lenses.
A tripod thread is fitted as standard and the unit is supplied with a shoulder/belt-mount pouch case.

Optional Accessories
7011 - 150mW IR Illuminator
7012 - 75mW IR Illuminator
7013 - 100mm f1.5 Lens
7015 - 165mm f2.0 Lens


LIGHTNING NVG� (DEP COMMERCIAL)

Gen Dimensions Weight FOV Lens 2 132 x 48 x 71mm 700g 40� 26mm f1.1 Mag Battery MRVR I Red Case 1.0x 2 x 1.5V Alkaline AA/MN1500 0.3-150m Yes Yes

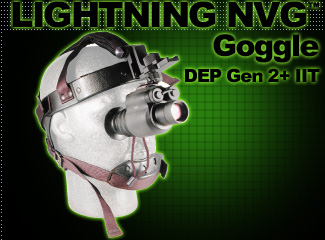

Lightning NVG goggle DEP gen2 +

Based on the ultra-compact, lightweight Lightning^� multipurpose Gen 2 monocular with a rugged, all-metal bodyshell. Fitted with a Photonis-DEP MilSpec Gen 2+ Image Intensifier Tube. Power is supplied by 2 x AA/MN1500 1.5V Alkaline batteries.

Supplied as standard with a compact 26mm f1.1 lens, the Lightning NVGsup>� offers parity (1.0x magnification) with an ultra wide 40� field of view. The lightweight headmount that is included offers a flip-and-lock facility, safety lock, eye-relief adjustment and replaceable leather forehead/head pads.
For longer range observation, optional multicoated lenses are available offering 4.0x and 6.3x magnification. A 3x Lens Converter can also be fitted to the standard 26mm f1.1 lens to give 3.0x image magnification.
A low power, close-range 5mW IR Illuminator is built-in as standard. Optional high power 75mW and 150mW IR Illuminators are available for longer range use in very low light/total darkness (NB these cannot be fitted at the same time as the headmount).
A weapon mount adaptation is available that allows use with either an active red dot laser sight or alternatively mounted behind a passive Aimpoint^� red dot or EOTech Holographic sight.
An SLR/Video Camera Adaptor is supplied as standard. The adaptor has 37mm and 52mm threads that allow the unit to be fitted to the filter thread of camera lenses.
A tripod thread is fitted as standard and the unit is supplied with a shoulder/belt-mount pouch case.

Optional Accessories
7011 - 150mW IR Illuminator
7012 - 75mW IR Illuminator
7013 - 100mm f1.5 Lens
7015 - 165mm f2.0 Lens


LIGHTNING NVG� (DEP GEN 2+)

Gen Dimensions Weight FOV Lens 2+ 132 x 48 x 71mm 700g 40� 26mm f1.1 Mag Battery MRVR I Red Case 1.0x 2 x 1.5V Alkaline AA/MN1500 0.3-150m Yes Yes

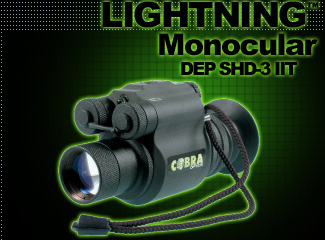

Lightning monocular DEP SHD-3 IIT

Based on the ultra-compact, lightweight Lightning^� multipurpose Gen 2 monocular with a rugged, all-metal bodyshell. Fitted with a Photonis-DEP MilSpec SHD-3 Image Intensifier Tube. Power is supplied by 2 x AA/MN1500 1.5V Alkaline batteries.
Supplied as standard with a compact 26mm f1.1 lens, the Lightning NVGsup>� offers parity (1.0x magnification) with an ultra wide 40� field of view. The lightweight headmount that is included offers a flip-and-lock facility, safety lock, eye-relief adjustment and replaceable leather forehead/head pads.
For longer range observation, optional multicoated lenses are available offering 4.0x and 6.3x magnification. A 3x Lens Converter can also be fitted to the standard 26mm f1.1 lens to give 3.0x image magnification.
A low power, close-range 5mW IR Illuminator is built-in as standard. Optional high power 75mW and 150mW IR Illuminators are available for longer range use in very low light/total darkness (NB these cannot be fitted at the same time as the headmount).
A weapon mount adaptation is available that allows use with either an active red dot laser sight or alternatively mounted behind a passive Aimpoint^� red dot or EOTech Holographic sight.
An SLR/Video Camera Adaptor is supplied as standard. The adaptor has 37mm and 52mm threads that allow the unit to be fitted to the filter thread of camera lenses.
A tripod thread is fitted as standard and the unit is supplied with a shoulder/belt-mount pouch case.
Optional Accessories
7011 - 150mW IR Illuminator
7012 - 75mW IR Illuminator
7013 - 100mm f1.5 Lens
7015 - 165mm f2.0 Lens


LIGHTNING NVG�

Gen Dimensions Weight FOV Lens SuperGen 132 x 48 x 71mm 700g 40� 26mm f1.1 Mag Battery MRVR I Red Case 1.0x 2 x 1.5V Alkaline AA/MN1500 0.3-150m Yes Yes

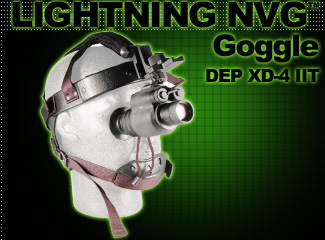

Lightning Goggle DEP XD-4 IIT

Based on the ultra-compact, lightweight Lightning^� multipurpose Gen 2 monocular with a rugged, all-metal bodyshell. Fitted with a Photonis-DEP XD-4 HyperGen Image Intensifier Tube. Power is supplied by 2 x AA/MN1500 1.5V Alkaline batteries.

Supplied as standard with a compact 26mm f1.1 lens, the Lightning NVGsup>� offers parity (1.0x magnification) with an ultra wide 40� field of view. The lightweight headmount that is included offers a flip-and-lock facility, safety lock, eye-relief adjustment and replaceable leather forehead/head pads.
For longer range observation, optional multicoated lenses are available offering 4.0x and 6.3x magnification. A 3x Lens Converter can also be fitted to the standard 26mm f1.1 lens to give 3.0x image magnification.
A low power, close-range 5mW IR Illuminator is built-in as standard. Optional high power 75mW and 150mW IR Illuminators are available for longer range use in very low light/total darkness (NB these cannot be fitted at the same time as the headmount).
A weapon mount adaptation is available that allows use with either an active red dot laser sight or alternatively mounted behind a passive Aimpoint^� red dot or EOTech Holographic sight.
An SLR/Video Camera Adaptor is supplied as standard. The adaptor has 37mm and 52mm threads that allow the unit to be fitted to the filter thread of camera lenses.
A tripod thread is fitted as standard and the unit is supplied with a shoulder/belt-mount pouch case.

Optional Accessories
7011 - 150mW IR Illuminator
7012 - 75mW IR Illuminator
7013 - 100mm f1.5 Lens
7015 - 165mm f2.0 Lens


LIGHTNING NVG� (DEP XD-4)

Gen Dimensions Weight FOV Lens HyperGen 132 x 48 x 71mm 700g 40� 26mm f1.1 Mag Battery MRVR I Red Case 1.0x 2 x 1.5V Alkaline AA/MN1500 0.5-150m Yes Yes
