cobra optics night vision weapon sights

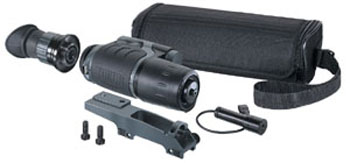

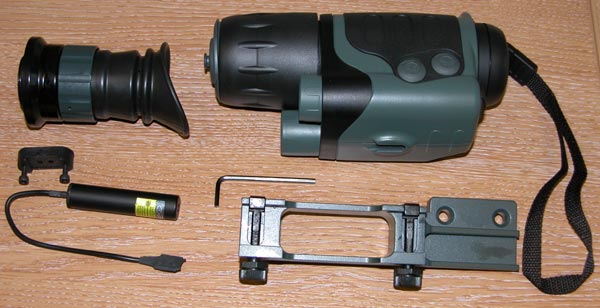

Yukon night vision monocular NV MT rifle kit, complete night vision rifle
sight with trigger operated laser beam
NVMT Riflescope Kit -- is a device that can be used as a night vision monocular or a riflescope. A dot of a laser pointer is used as an aiming
reticule of the device. With the laser pointer installed on the night vision or the rifle can be used independently during the day.
Night vision monocular has high illuminative and high magnification power. With rifle eyepiece and rifle mount in place, the device can be used as a night vision riflescope. The kit allows NVMT to be used in many situations and for a range of purposes.
Length, inch/mm
|
6.4 / 162
|
10.3 / 261
|
Width, inch/mm
|
3.2 / 82
|
3.2 / 82
|
Heigth, inch/mm
|
2.4 / 60
|
2.4 / 60
|
Weight, oz/kg
|
14,8 / 0,42
|
24,7 / 0,7
|
Visual Magnification, х
|
3
|
1.5
|
Vertical Resolution, lines/mm
|
36
|
36
|
Angular Field of View, Grad
|
20
|
20
|
Eye Relief, mm
|
12
|
45
|
Objective Lens, mm
|
42
|
Vieing Range, m*
|
200
|
Eyepiece adjustment, diopter
|
� 4
|
Built in I.R.Illuminator, yd./m
|
100/100
|
Operating Voltage, V
|
3
|
Laser Pointer (LP) Wavelength, nm
|
633
|
LP Dispersion angle, mRad
|
1.0
|
LP Power, mW
|
4.0
|
LP Angle adjustment, angle/degrees
|
� 2,0
|
LP Voltage, V
|
6.0 (PX28L)
|
Temperature Range
|
-22�F to 104�F
-30�C to 40�C
|
Maximum Humidity, %
|
93
|
Operating Time, hour
|
20
|

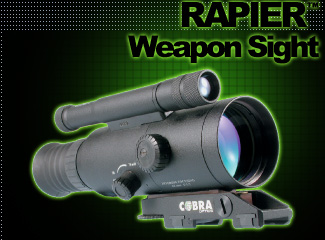

Rapier super gen1+ night vision weapon sight
- Ultra clear image
- Generation 1 plus (Gen 1+)
- 1.7X magnification (3.4 with optional 2x converter)
- Internal front lens and rear eyepiece focusing
- Flip cap
- Shock resistant to large calibres (up to 6500J)
- External windage and elevation controls
- Powerful built in IR illuminator
- Weatherproof
- Adapted weaver mount (down to 9.5mm)
- Max relative viewing range approx 300m (1000')
- 3 bar reticule
Dimensions |
180x99x65mm |
Eyepiece |
+/- 4 dioptres |
Weight |
0.85kg |
IR Illuminator |
Built in 75mw |
Objective lens |
64mm f1.2 |
battery |
2xAA |
Magnification |
1.7x(3.4) |
Temp range |
-40 to +50 degC |
Field of view |
17deg |
Humidity |
max 98% |
Focusing |
6.0m-inf |
Guarantee |
1 year |
night vision weapon sights

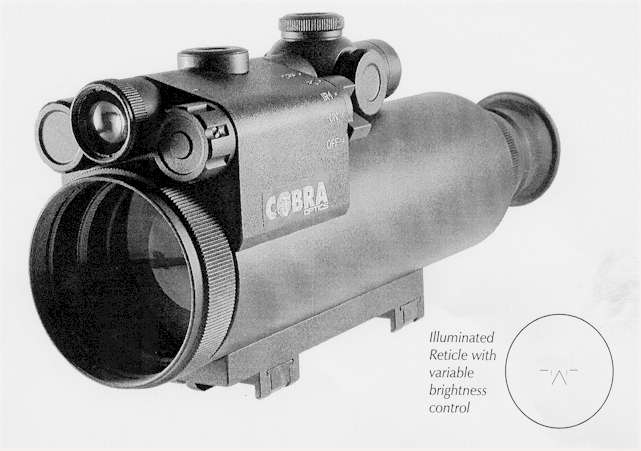

Sabre Gen 1 night vision weapon sight
- Illuminated reticle with brightness control
- First generation technology
- 3.0x magnification
- Front lens and rear eyepiecs focusing
- LED on and IR on indicators
- Built in windage and elevation controls
- Weaterproof
- Built in IR illuminator, 2 settings
- Adapted 63B (US) mount (9.5-11.5mm rails)
- Max relative viewing range approx 150m (500')
Dimensions |
255x62x108mm |
Eyepiece |
+/- 4 dioptres |
Weight |
1.0kg |
IR Illuminator |
Built in |
Objective lens |
80mm f1.6 |
battery |
1xCR123A |
Magnification |
3x |
Temp range |
-20 to +40 degC |
Field of view |
10deg |
Humidity |
max 80% |
Focusing |
5.0m-inf |
Guarantee |
1 year |
night vision weapon sights

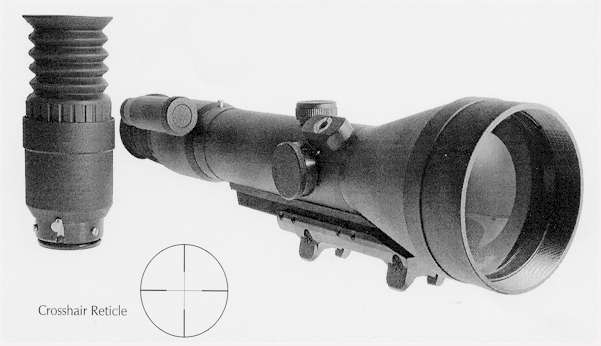

Scimitar gen 2 day or night weapon sight
- 2nd generation night sight
- Crosshair reticle
- Optional 75mw illuminator
- 100mm F1.5 66mm element lens
- Internal windage and elevation
- Detachable eyepiece for day/night use
- Mount extra
Dimensions |
305x74x74mm |
Eyepiece |
+2/- 4 dioptres |
Weight |
1.1kg |
IR Illuminator |
Optional 75mw |
Objective lens |
100mm f1.5 |
battery |
1xCR123A |
Magnification |
3xday,3.7night |
Temp range |
-40 to +50 degC |
Field of view |
10deg |
Humidity |
max 98% |
Focusing |
6.0m-inf |
Guarantee |
1 year |
|
|
